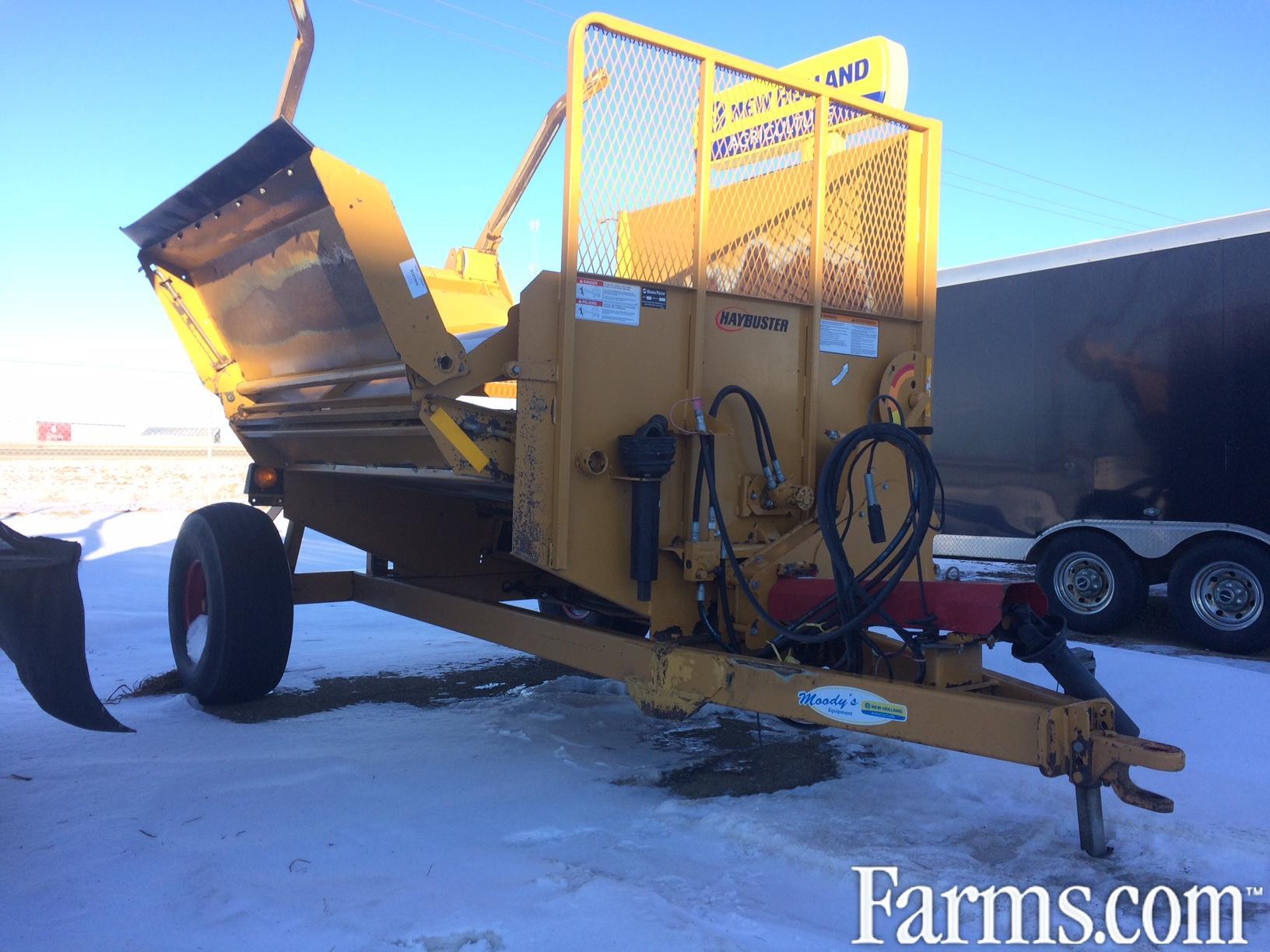

This manual completely and accurately describes the operation and maintenance of the 2650 BALEBUSTER™ as of the date of publication. 2650 Balebuster Options. This manual completely and accurately describes the operation and. 2650 BALEBUSTER Documentation. Properly use and service your Haybuster equipment.

WEIGHT Total 4500 lbs. (2041 kg) Tongue (Bale loader fully raised) 1300 lbs. (589.7 kg) TRANSPORT DIMENSIONS (Bale loader fully raised, deflector folded) Width 8 ft. Contoh Program Kasir Dengan Phproxy. (2.57 m) Length 14 ft. (4.34 m) Height 11 ft.

(3.38 m) WORKING DIMENSIONS (With 1 bale, deflector in spread position) Width 11 ft. (3.35 m) Length 14 ft.

(4.34 m) Height 11 ft. (3.38 m) WORKING DIMENSIONS (With 2 bales, deflector in spread position) Width 11 ft. (3.35 m) Length 19 ft. (5.97 m) Height 11 ft. (3.38 m) CHASSIS FEATURES Towing Arrangement Clevis type hitch. Jack Capacity 5000 lbs.

(2273 kg) Jack Travel 10 in (25.4 cm) Tires 2) 12.5L x 15 - 8 Ply Wheels 2) 10 x 15 - 6 Bolt, Drop Center Bearing Type Tapered Roller BALE LOADER Type Integral 2 Stage, Twin Boom Arms Bale Tines Tubular Steel, 10° Float, 4 Position Width Adjustable Hydraulic Cylinder 4-1/2 in x 24 in (11.43 cm x 60.96 cm ), Double-Acting BALE CONVEYOR Type 3 Roller Chains with Bolt-On Cross Slat Drive Hydraulic Orbital Motor with Adjustable Flow Control BALE SHREDDER CHAMBER Max. Bale Size 6 ft. Long x 6-½ ft.

(1.83 m x 1.98 m) Max. Bale Weight each 2200 lbs. (1000 kg) Rotor Length 78 in.

(1.98 m) Rotor Diameter (Flails extended) 25 in. (63.5 cm) Rotor Bearing Ball, 1-3/4 in. (4.44 cm) Number of Flails 30 Rotor Speed 1300 RPM Flail type Heavy Duty, 7/16 in. (11.11 mm) thick, 3 lbs. (1.36 kg), Heat Treated Spring Steel, Swinging Number of Stripper Channels 1 Number of Slug Bars 5 Slug Bar Single point, 5 Adjustment Settings through a 180 Degree Range (optional hydraulic adjustment) Delivery Right Hand Discharge Deflector 6 Adjustment Settings through a 120 Degree Range Max.

Horizontal Spread Straw, up to 50 ft. (15.24 m) OPERATOR CONTROLS Loader 1 Tractor Double-Acting Hydraulic Valve Bale Conveyor 1 Tractor Double-Acting Hydraulic Valve Bale Conveyor Speed Conveyor Speed Control Valve Slug Bar Hand Lever with 5 Settings (optional hydraulic adjustment) Deflector Hand Lever with 6 Settings (optional hydraulic adjustment) REQUIREMENTS FOR OPERATION PTO Horsepower Required 65hp (48.5kw) to 155hp (115.6kw) PTO Type 1000 RPM, 1-3/8 in. PTO Shaft with 21 Splines choice of Constant Velocity or Standard PTO Min.

Tractor Hydraulic Output 8 gpm at 1500 psi (46 lpm x 10,345 kPa) Tractor Hydraulic Controls 2 Double-Acting Control Valves with Quick Coupler Outlets Tractor Weight Must be of equal or greater weight than that of a 2650 with 2 bales. Tires (Set of 2) 31 x 10.5 x 15-ply load rating 'C' Highway Rated Tires (Set of 2) 14L x 16.1 8-ply Flotation Tires Stripper Channel Kit This option allows for a finer cut, with the installation of up to 2 additional striper plates. Wide Deflector Belt The 18 in. (45. Run The Road Vol 1 Rare here. 72 cm) wide deflector belt, is used when bunk feeding to inhibit the hay fines from being delivered beyond the deflector shield. Left Side Extension Adds a left side extension to the shredder chamber. Hydraulic Deflector Control Kit This option allows the operator to control deflector and rack positions from the operator’s seat.

2650GT Grain Tank The 21GT grain tank is used to meter and apply a grain or supplements to the windrow. The 21GT grain tank has a capacity of 21 bushels (740 liters), and requires 1 set of hydraulic outputs with a minimum output of 8 gpm at 1500 psi (46 lpm x 10,345 kPa). Fenders Kit This kit includes right & left fenders, and uses existing hardware. Road Lights Kit This kit includes right and left rear light assemblies, wiring harness, mounts, and hardware. Axle Extension Kit Extends the 2650's axles 12 inches (30.48 cm) on each side for stability in uneven and steep terrain. EZ 2000 Series Electronic Scale, Digi-Star Functions Weighs only the bale in the shredder chamber.

Net/Gross Mode for determining the new weight or the total weight on the scale (gross weight). Tare Feature provides a temporary zero for easier operation. Features EZ View 2000's Oversized Display Scrolling built-in Help Messages Microprocessor Design Audio/Visual Feedback from Switches Rugged Indicator Case made out of Lexan® Gold-Plated Contacts Self-Diagnostics Testing Lbs./kg Selection International Features and CE Approved Bolt-On Load Cells Mounts Four Point Load Cell Mounting.
